TAU 1515

Name: TAU 1515
Brand: Orthoscan

Orthoscan

For those who desire more in a mini C-arm

A larger detector and live image give you the freedom to view anatomy as it needs to be seen. Pulsed fluoroscopy and other dose-saving features reduce your dose without sacrificing image quality. Pediatric indication – an industry first – broadens your patient base.

Bring new opportunities to your facility and patients with Orthoscan TAU 1515.

Download Brochure TAU Family Brochure

Highlights

LED Lights

Insufficient lighting during a case can make it challenging to see anatomy clearly. Unique to the Orthoscan TAU family, surgical LED lights provide additional illumination on the anatomy. Eliminate shadows cast from the C-arm and the OR so you can work with certainty.

Bilateral Controls

New backlit controls are easier to see with additional buttons for upgraded functionality.

‍

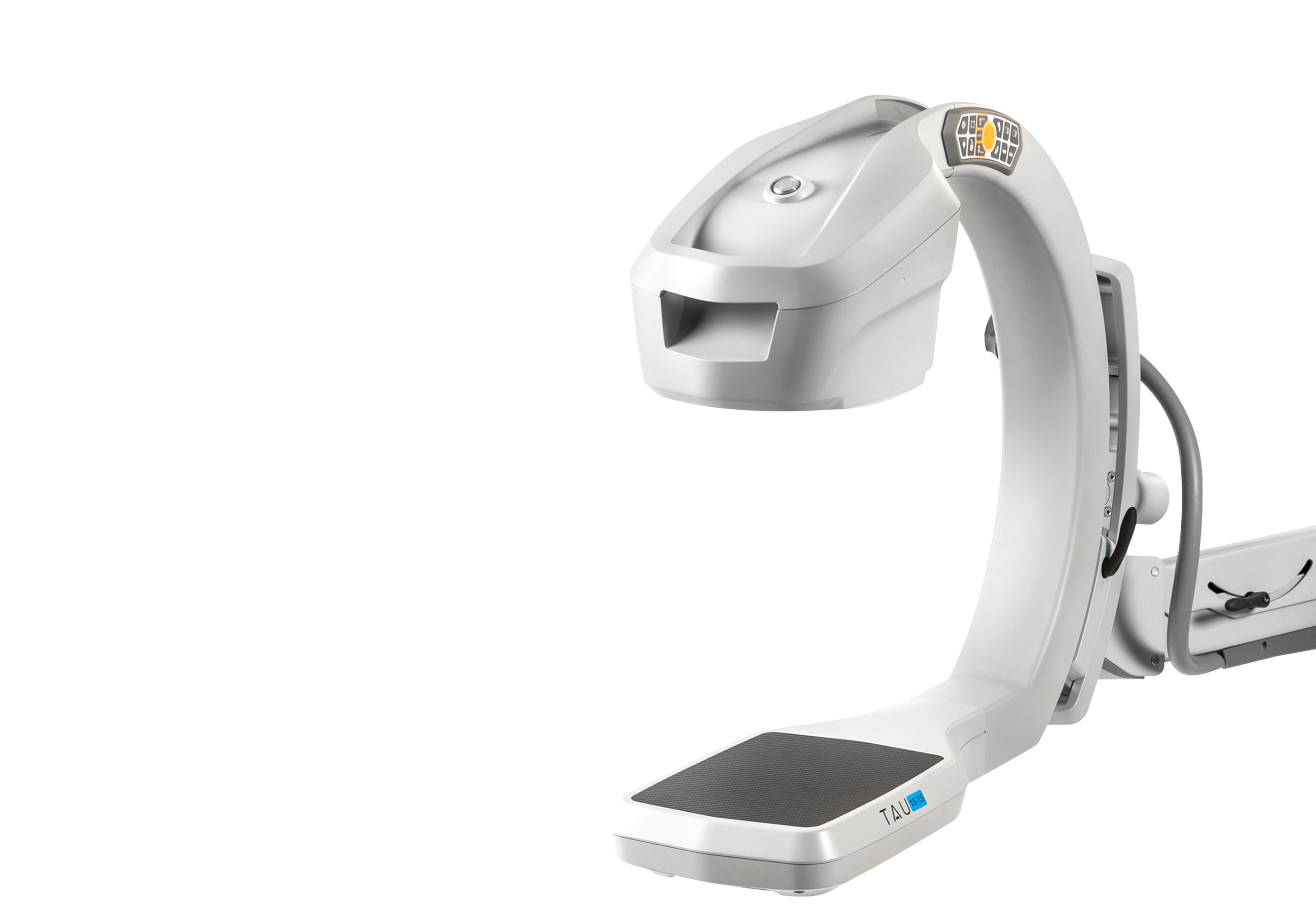

C-Arm Design

Focus on your case with an increased orbital rotation of 160°, larger arc depth of 20”, and improved umbilical cable. Effortlessly maneuver the C-arm to attain preferred views without stressing your patient'sanatomy.

‍

Pulsed Fluoroscopy

Orthoscan TAU 1515 features pulsed fluoroscopy technology, previously available only on full size C-arms. By imaging at 30 pulses per second, significantly reduce your dose rate compared to conventional continuous fluoroscopy — all without loss of image quality or detail. Further reduce dose with selectable pulses per second of 15 and 7.5 pps, depending upon your imaging needs.

‍

Optimized Dose Filter

While Orthoscan TAU is a low dose device by design, it is also the only mini C-arm designed for pediatric use . By engaging the Optimized Dose Filter, Orthoscan TAU can reduce dose significantly in children and adults.

‍

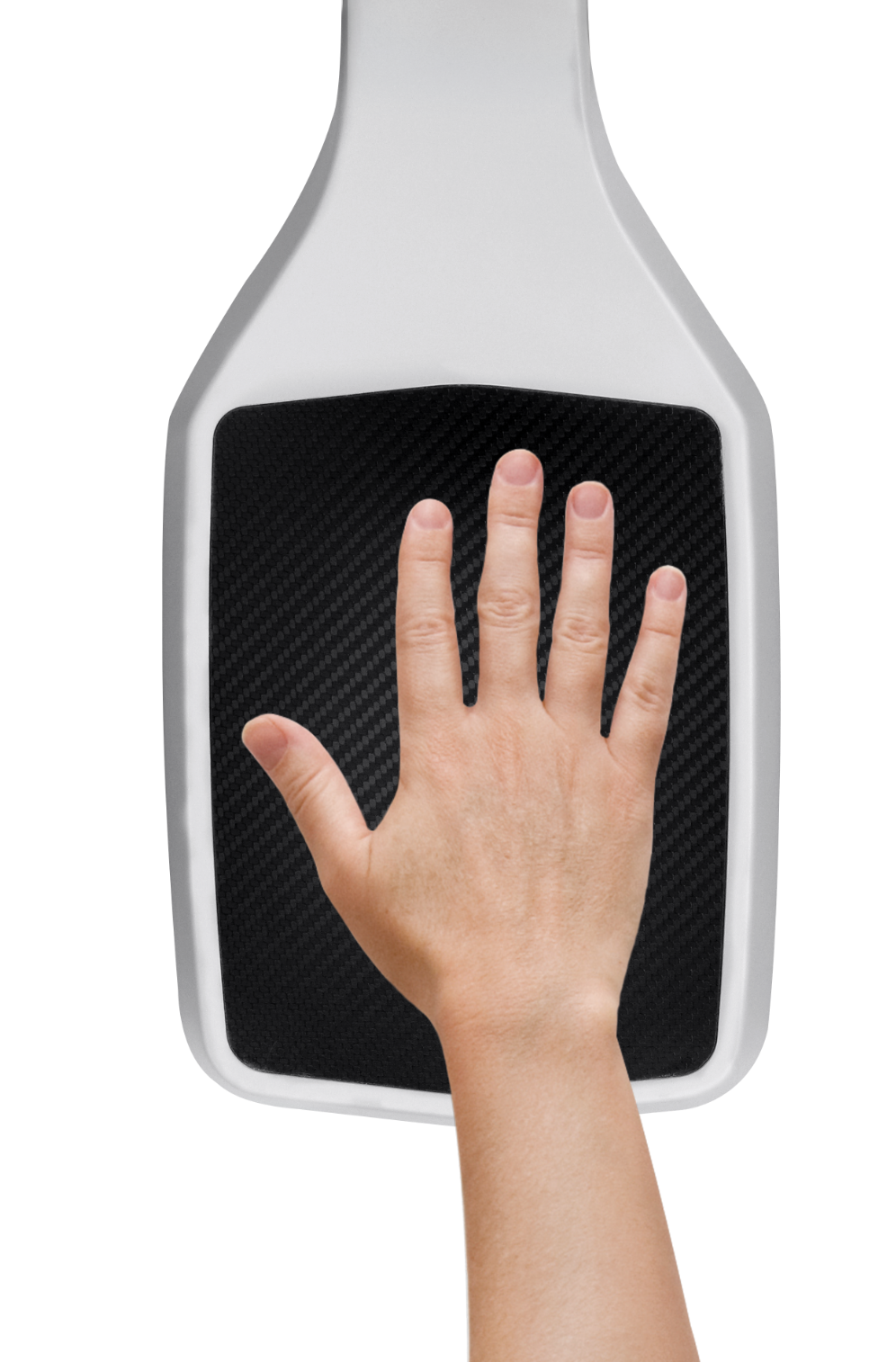

Nest-Gen Flat Panel Technology

Achieve increased DQE efficiency with the latest generation CMOS detector. Free from a dependency on photon energy, these detectors produce low-noise images even in very low dose situations. Next generation detectors improve image brightness, decrease ramp time, and reduce dose.

Discover the power of TAU

Orthoscan has raised the bar with a family of mini C-arms designed for surgical imaging and orthopedic care. The power of choice is in your hands with three different models to choose from: Orthoscan TAU 1512, Orthoscan TAU 1515, and Orthoscan TAU 2020.

Features

Improved Bilateral Controls

New backlit controls are easier to see with additional functionality.

Upgraded Servicability

Redesigned from the inside out to reduce service maintenance.

Three-Way Brake Control

Maneuver your system with ease down hallways, around corners, and in the operating room.

User-Friendly Connectivity

Easy access to the power button and I/O ports directly on top of the chassis.

Integrated Cable Pushers

Protects power cords and other cables from being damaged.

Enhanced Security

Keep your equipment and data safe in the modern healthcare environment.

On-Screen Help

Description of common system functions available directly on-screen.

‍

Specifications

Monitor

Display size: 27" LCD

Primary "live" image: 12" x 12"

Dual reference image: 6" x 6"

HDMI: ✓

Detector

Type: Flat Panel Detector

Detector size: 15 cm x 15 cm

Pixel spacing 100 Microns

X-Ray Generator

kV range: 40 - 78 kV

mA range: 0.040 - 0.160 mA

Selectable pulse rate: 30, 15, 7.5, 2 pps

Pediatric indication : ✓

Electrical

Sterile field controls: Bilateral

Multifunction wireless foot switch: ✓

Laser alignment: ✓

Documentation

Wireless communication: Optional

Image capacity: 108,000

Video capacity: 60 min

Mechanical

Weight: 475 lb

Height: 48"

Footprint (W x L): 29" x 33"
