See more with the largest monitor and detector ever available on a mini C-arm. Reach new patients with first-in-class pediatric indication. Work safer with pulsed fluoroscopy and other dose-saving features.

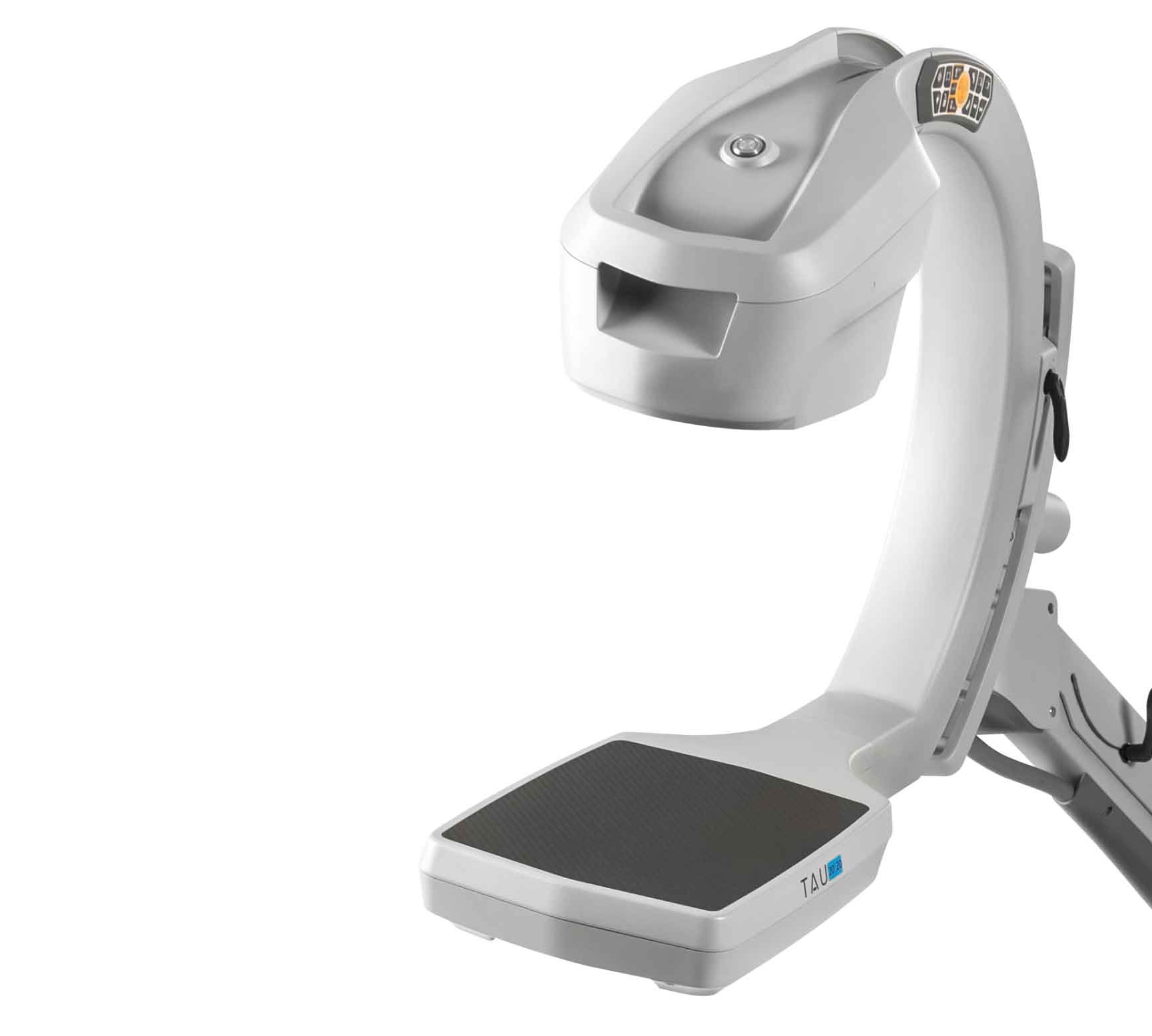

Orthoscan TAU 2020. Expand your capabilities with the most advanced mini C-arm on the market.
Orthoscan has raised the bar with a family of mini C-arms designed for surgical imaging and orthopedic care. The power of choice is in your hands with three different models to choose from: Orthoscan TAU 1512, Orthoscan TAU 1515, and Orthoscan TAU 2020.
Keep your equipment and data safe in the modern healthcare environment.
Easy access to the power button and I/O ports directly on top of the chassis.
Maneuver your system with ease down hallways, around corners, and in the operating room.
Protects power cords and other cables from being damaged.
Redesigned from the inside out to reduce service maintenance time.
New back-lit controls are easier to see with additional buttons for upgraded functionality in the sterile field.
Display size: 32" 4K LCD
Primary "live" image: 14.5" x 14.5"
Dual reference image: 7" x 7"
HDMI: ✓
Type: Flat Panel Detector
Detector size: 20 cm x 20 cm
Pixel spacing: 100 Microns
kV range: 40 - 78 kV
mA range: 0.040 - 0.160 mA
Selectable pulse rate: Cont., 30, 15, 7.5, 2 pps
Pediatric indication: ✓
Sterile field controls: Bilateral
Multifunction wireless foot switch: ✓
Laser alignment: ✓
Wireless communication: Optional
Image capacity: 108,000
Video capacity: 60 min
Weight: 475 lbs
Height: 48"
Footprint (W x L): 29" x 33"
