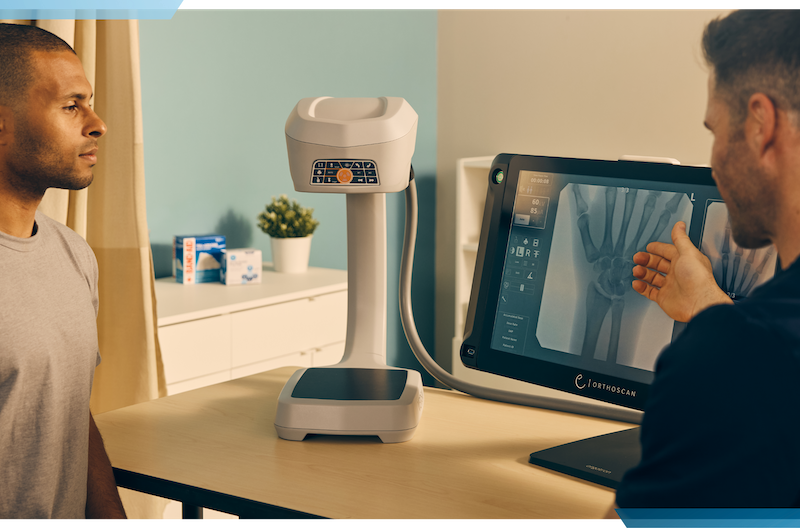

Designed for unparalleled mobility, Orthoscan VERSA is a fully portable imaging solution that seamlessly integrates into any clinical setting—whether on a desktop or an articulating monitor cart. The intuitive touchscreen monitor delivers a tablet-like experience, eliminating the need for bulky components and streamlining the clinical workspace. With effortless portability, VERSA enables smooth transitions between satellite clinics and off-site locations, optimizing efficiency and patient care.
Versatile. Portable. Flexible.
An intuitive diagnostic concept and integrated touchscreen keyboard for high clinical standards.
Speed up patient flow, mitigate radiology bottlenecks, and increase diagnostic capabilities.
Versa enables the provider to consult, image, and diagnose patients without leaving the exam or procedure room.
Effortless connection, flexible to operate and full manipulation for multiple procedures enhancing the workflow efficiency.
Whether standing, sitting or laying down on a table, reposition quickly and easily to achieve optimal positioning of anatomy.

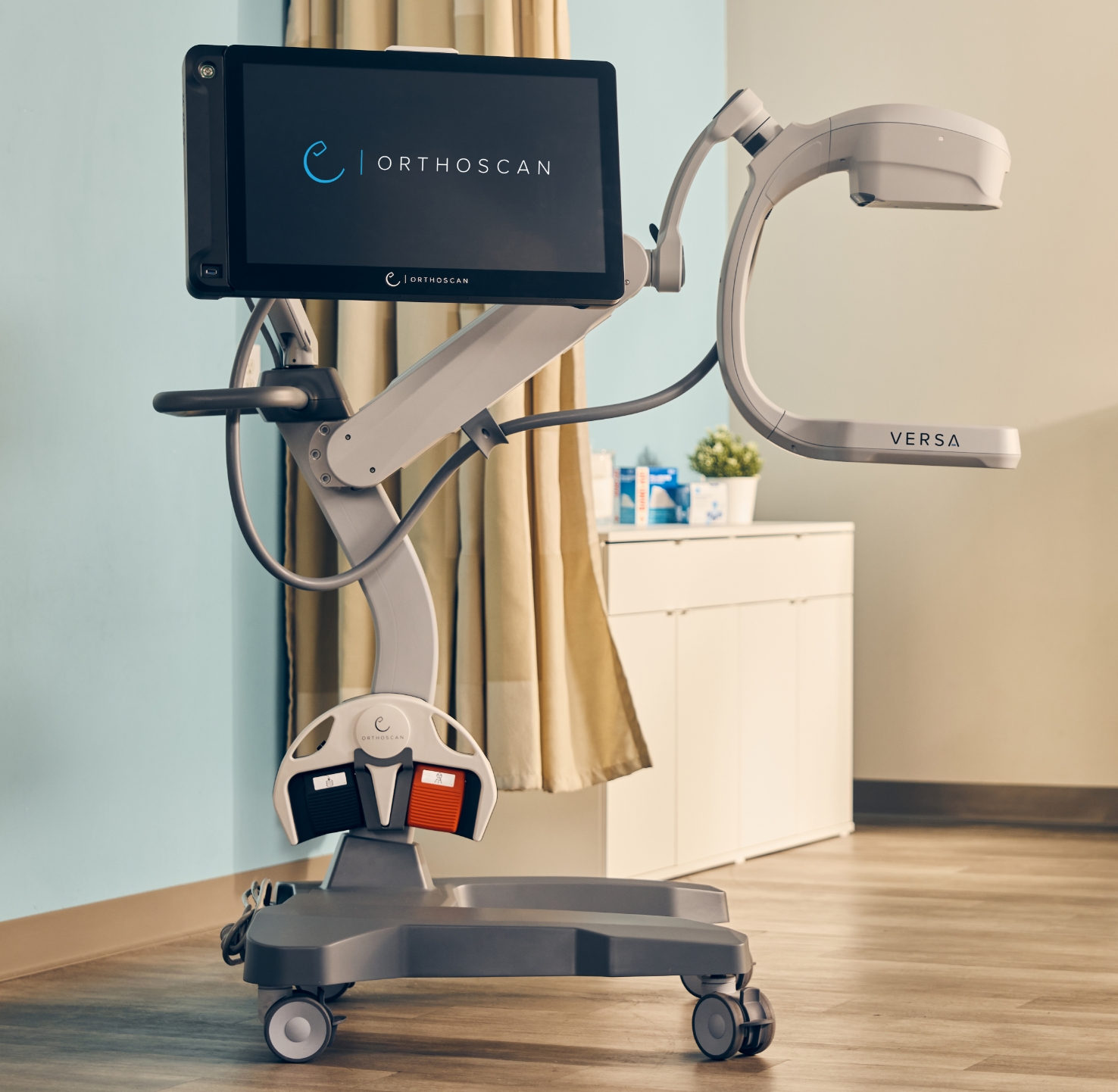

An orbital rotation of 180° and 430° pivot rotation, enables clinicians complete control over different anatomical views.
Display size: 24" LCD
Primary "live" image: 10.5" x 10.5"
Dual reference image: 5" x 5"
HDMI: ✓
Type: Flat Panel Detector
Detector size: 15 cm x 15 cm
Pixel spacing: 100 Microns
kV range :40 - 78 kV
mA range: 0.04 - 0.160 mA
Selectable pulse rate: 30, 15, 7.5, 2 pps
Pediatric indication: ✓
Sterile field controls: Single
Multifunction wireless foot switch: ✓
Laser alignment: ✓
Wireless communication: Optional
Image capacity: 108,000
Video capacity: 60 min
Versa C-arm weight: 35 lb
Versa C-arm height: 22.3"
Versa footprint (W x L): 9.8" x 19.6"
Accessory cart weight: 172 lb
Accessory cart footprint (W x L): 28" x 30"
