Ziehm Solo FD

Name: Ziehm Solo FD
Brand: Orthoscan

Orthoscan

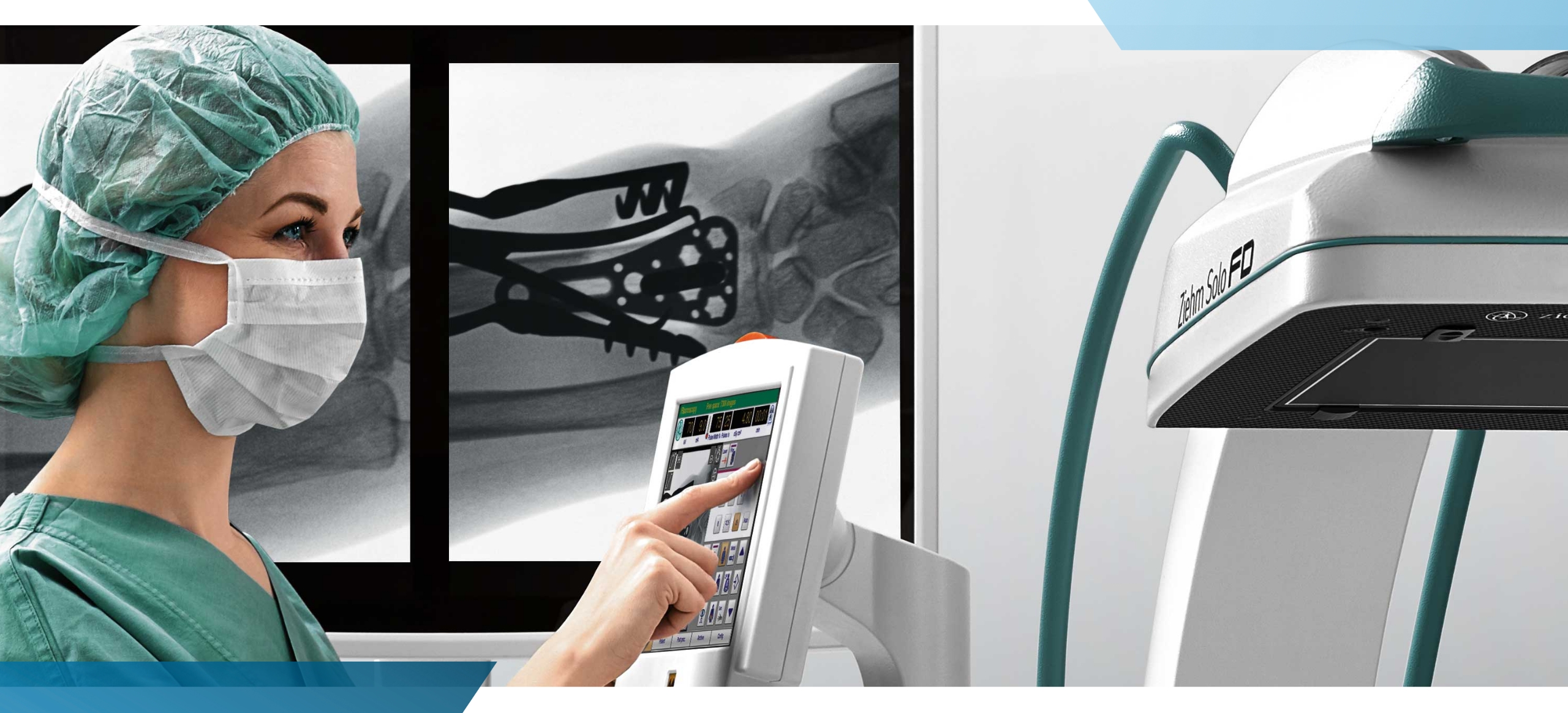

The most compact C-arms on the market.

Versatile viewing options and new dimensions in user friendliness offer maximum flexibility in the OR to support your clinical workflow.

With the latest improvements in dose regulations, the Ziehm Solo FD ensures best image quality at a minimized dose.

‍

Download Brochure

Highlights

Laser Positioning Device

Integrated in flat-panel and generator housing for accurate and dose-free positioning of C-arm

Anatomical Programs

With automatic optimization of dose and image quality for best results

Low Dose Mode

In all anatomical programs for particularly dose-sensitive procedures, e.g. in pediatrics2

Removable Grid

To reduce dose in pediatric and other dose-sensitive procedures

Reduction of Pulse Frequency

Manually or fully automatically to lower the accumulated dose

High-Speed ADR

For intelligent, fast regulation of pulse rate to lower the dose level

Premag

For exposure-free magnification of X-ray images

Virtual Collimators

For exposure-free positioning of collimators

Object Detected Dose Control (ODDC)

To automatically analyze the area of interest and minimize dose while optimizing image quality

ZAIP

To display fast-moving objects like guide wires and even the smallest vessels in razor-sharp image quality

Features

Applications

Orthopedics, Trauma, PainManagement & more with the latest flat panel technology

Affordability

Lowest entry & ownership cost of any full size flat-panel detector system on the market

Flexibility

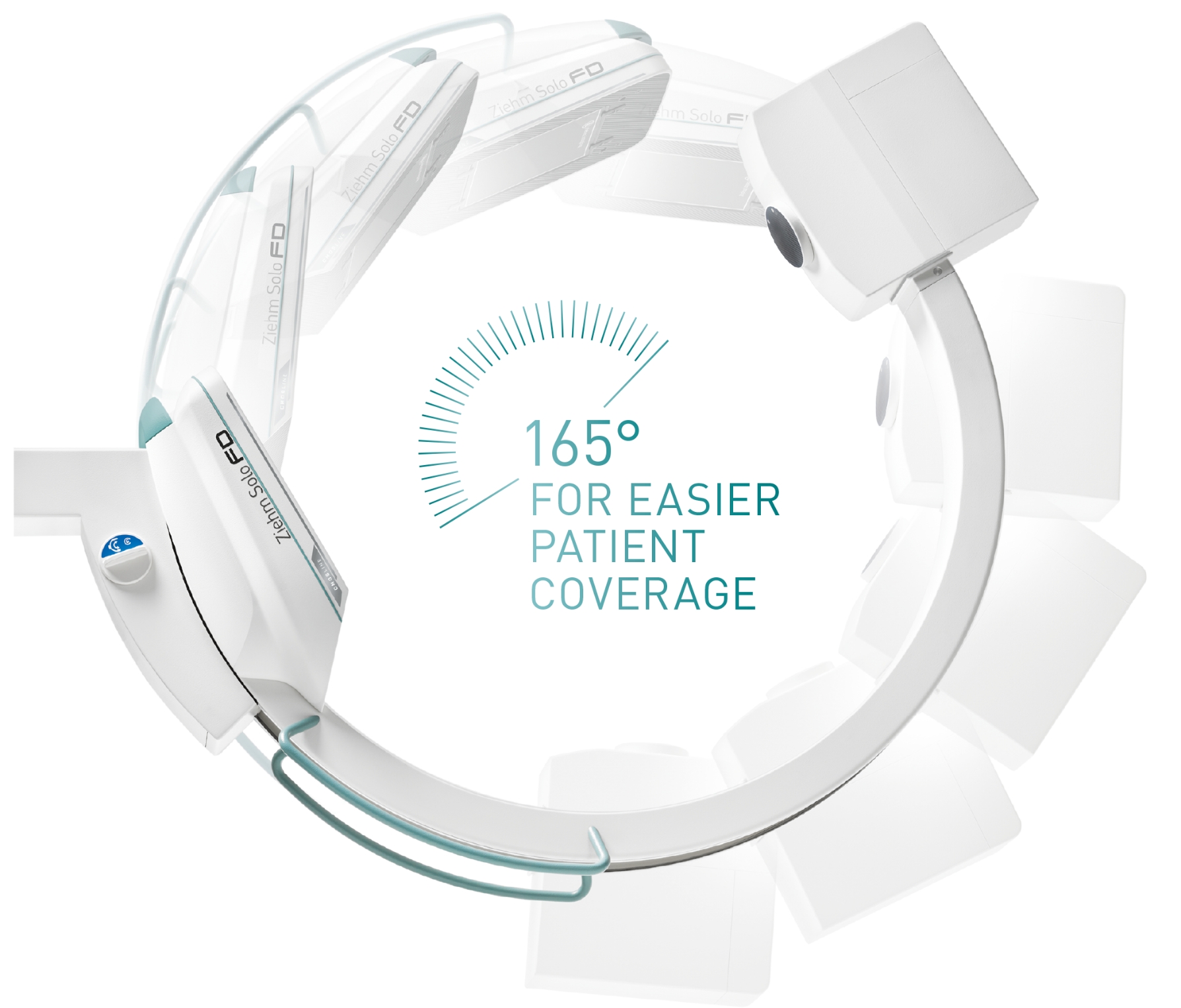

165º of orbital movement &34" of free space for easier patient coverage

Magnification Mode

Zero dose increase while retaining image quality

Specifications

Monitor

Display size: 27" Split Screen

Ziehm viewing station: Optional

Imaging Technology

Type: Flat Panel

Detector size: 21 cm x 21 cm / 31 cm x 31 cm

X-Ray Generator

Pulsed fluoroscopy kV range: 40 - 120 kV

mA range: 0.2 - 20 mA

Pulse rates: 25, 12.5, 8, 4, 2, 1 pps

Electrical

Power supply: 100-240 VAC (± 10%), 50/60 Hz

Image Processing

Image capacity: 100,000

Wireless communication: Optional

Multifunction wireless footswitch: Optional

Printer: Optional

Dimensions

Weight: 765 lb - 787 lb (± 6%)

Height: 69" - 85"

Width: 31.5"

Length: 67" - 76"
